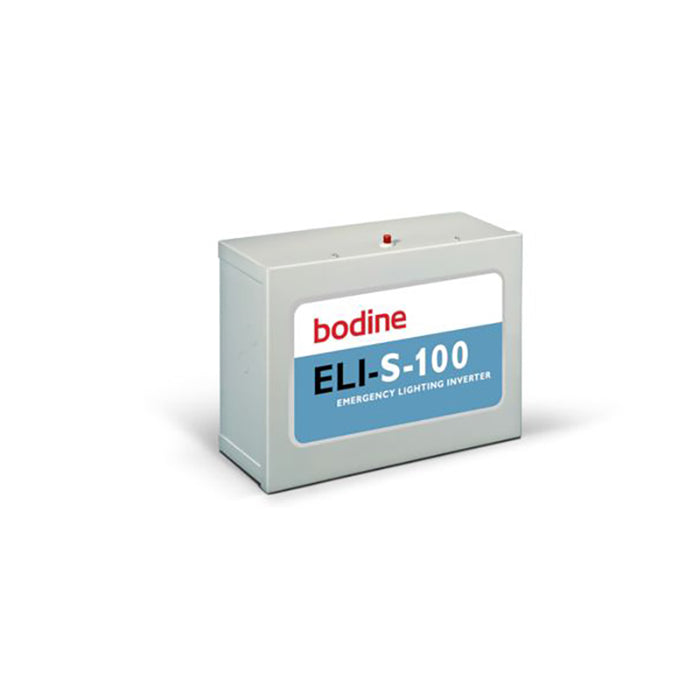

Bodine ELIS100 Emergency Lighting Inverter, 100W Max, 120/277V AC

100 VA Sinusoidal (Sine Wave) Output Inverter

Features

• Output Power (Nom): 100W
• Output Power (Max): 400W
• Input Voltage: 120/277V
• Automatic output voltage select
• Maximum Output Power: 100 VA into load
• Automatic Dimming (0 to 10V) of Connected Load up to 400VA
• Illumination Time: 90 Minutes
• Maintenance-Free Sealed Lead Acid Battery
• Temperature Rating: 0° C to 40° C

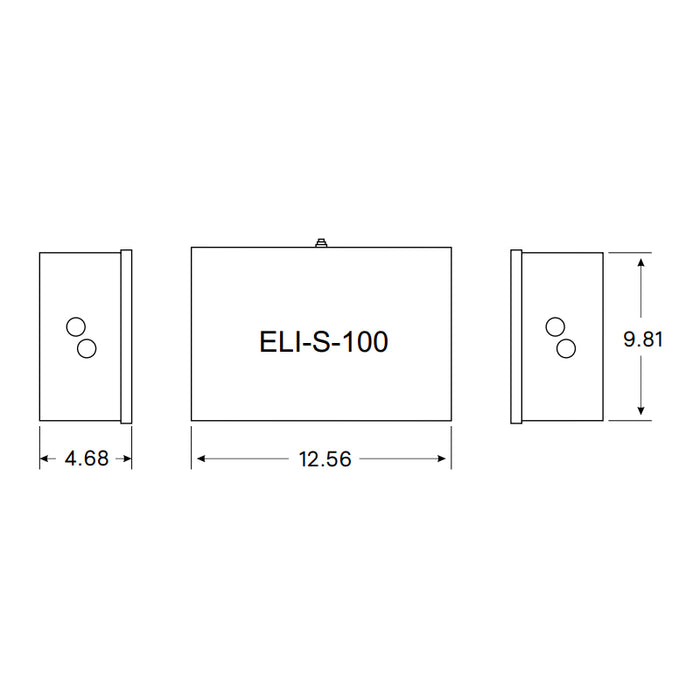

Dimensions

• Width: 12.56"
• Height: 4.68"
• Depth: 9.81"
• Weight: 25 lbs

Warranty

• Electronics: 5 years full

Documents

• Spec Sheet
• Instruction Sheet

Labels and Listings

• UL Listed to UL 924 and tested to CSA 22.2, No. 141 Factory or Field Installation (Indoor and Damp)
• CEC Title 20 Compliant
