American Lighting Trulux 24V High Output Tape Light 5M Kit

High Output tape light kits provide the components for a complete Trulux Lighting System. The High Output Kit offers an impressive amount of lumens while staying highly energy efficient. This convenient kit is ideal for undercabinet lighting or other similar task lighting applications where brightness is needed.

Features

• Wattage: 4.6W/ft

• Voltage: 24V
• Color Temperature: 3000K

• Lumens: 300Lm/ft
• CRI: 96+
• Dimming: Via Handheld Remote Control (5-100%)

• Beam Angle: 120°
• Cutting Point: 3.94"
• Max Run: 16.4 ft
• IP54 Rated

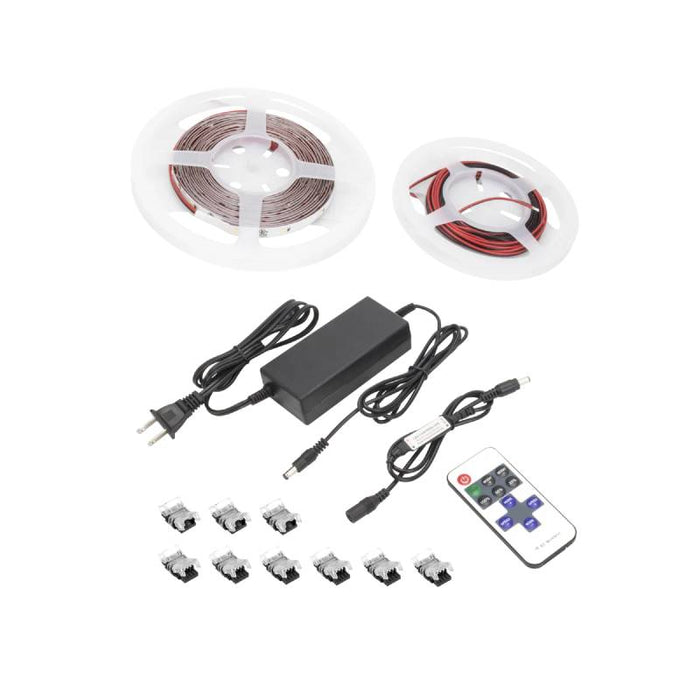

• HTL-5M kit includes:
  • 24V DC Plug-in Power Supply
  • 15ft (20/2) Wire Spool
  • 1 x In- line RF Receiver

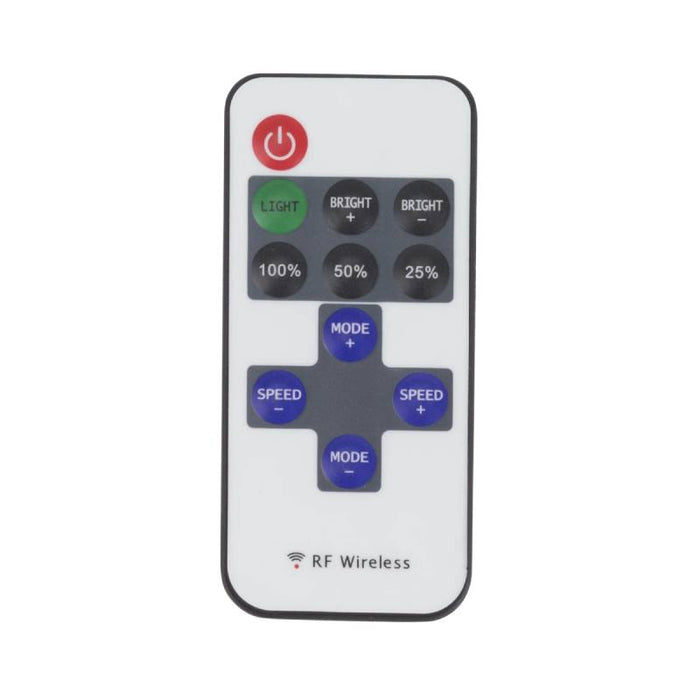

  • 1 x Handheld Remote
  • 6 x HD Power Feeds
  • 3 x HD Splice Connectors

Dimensions

• Length: 16.4 ft
• Width: 0.39"

• Height: 0.06"

Estimated Life

• 50,000 hours

Documents

• Spec Sheet
• Instruction Sheet

Accessories  (Sold Separately):

• 6-ft 4-in-1 Connection Kit
• 4-in-1 Connector Block
• 6-ft Power Feed (Single Color)
• Linking Cable (Single Color)
• 90° “L” Tape-to-Tape Splice Connector (Single Color)
• 15ft (20/2) Wire Spool
• 100ft (16/3) In-wall Rated Wire Spool
• Simple Select In-line Controller (Single Color)
• In-Line Splice Terminal Block
• 1m Plastic Wire Cover Raceway (White)
