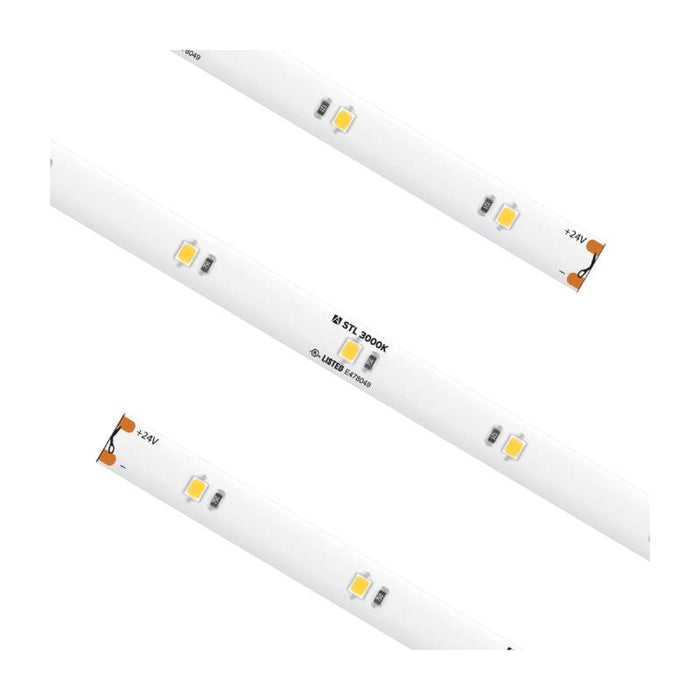

American Lighting Trulux 24V Standard Grade Tape Light 5M Kit

Standard Grade tape light kits provide the components for a complete Trulux Lighting System. As the entry-level tape light grade in the Trulux line, Standard grade offers a modest amount of lumens while staying highly energy efficient. This convenient kit is ideal for accent lighting applications such as toe-kick lighting or above cabinet lighting.

Features

• Wattage: 2.19W/ft

• Voltage: 24V
• Color Temperature/Lumens:
  • 2700K / 146 Lm per ft.
  • 3000K / 150 Lm per ft.

• CRI: 96+
• Dimming: PMW (5-100%)

• Beam Angle: 120°
• Cutting Point: 6.56"
• Max Run: 16.4 ft
• IP54 Rated - Damp Location
• Kit includes:
  • 24V DC Plug-in Power Supply
  • 15ft (20/2) Wire Spool
  • 1 x In- line RF Receiver
  • 1 x Handheld Remote
  • 6 x HD Power Feeds
  • 3 x HD Splice Connectors

Dimensions

• Length: 16.4 ft
• Width: 0.39"

• Height: 0.06"

Estimated Life

• 50,000 hours

Documents

• Spec Sheet
• Instruction Sheet

Accessories  (Sold Separately):

• 6-ft 4-in-1 Connection Kit
• 4-in-1 Connector Block
• 6-ft Power Feed (Single Color)
• Linking Cable (Single Color)
• Tape-to-Tape Splice Connector (Single Color)
• 15ft (20/2) Wire Spool
• Simple Select In-line Controller (Single Color)
• In-Line Splice Terminal Block
• 1m Plastic Wire Cover Raceway (White)
